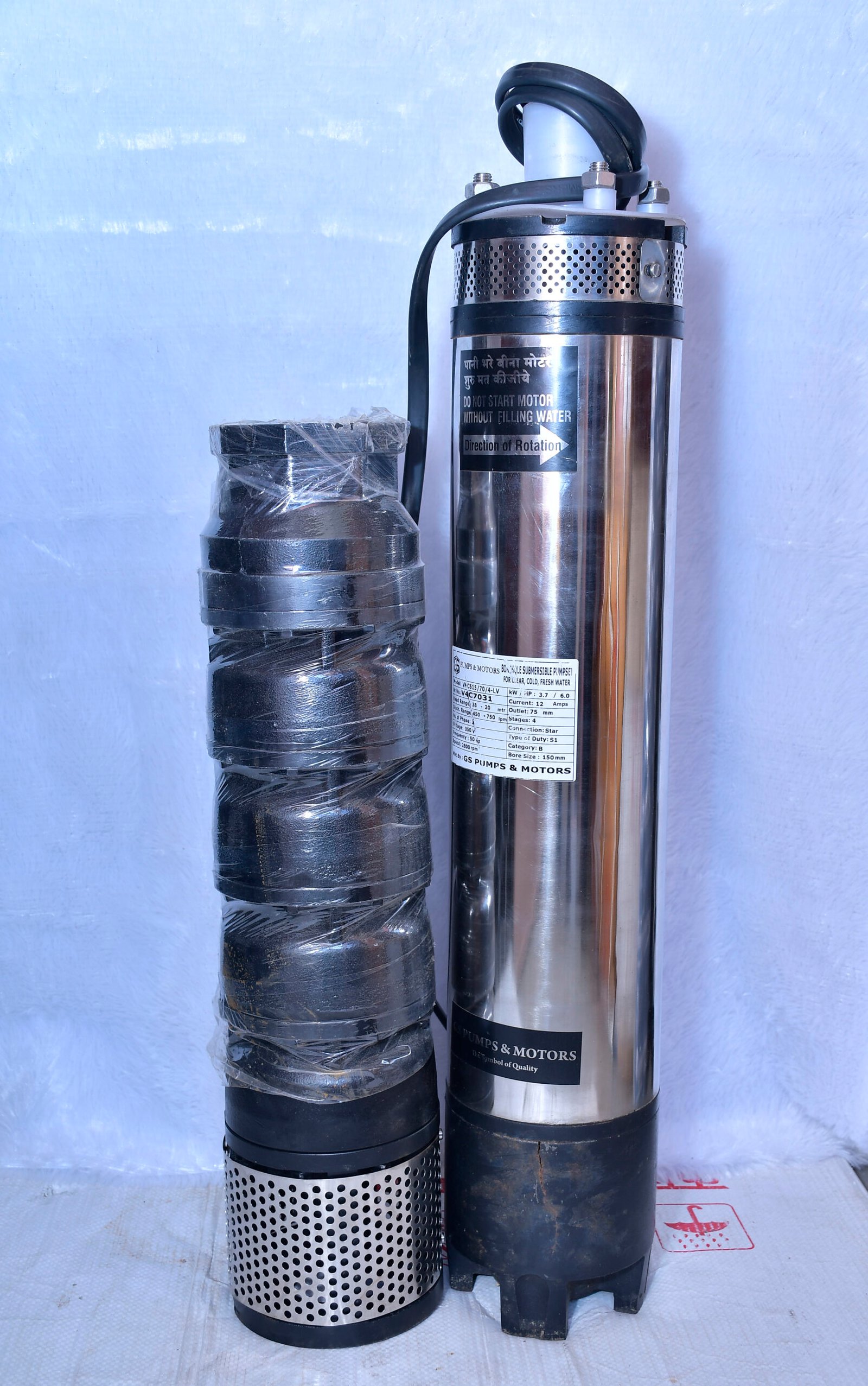

Borewell Submersible Pump-V6

Features

  • Wide Voltage Design
  • Designed To Prevent Overloading
  • High Efficiency And Energy Saving Design
  • Dynamically Balanced Rotating Parts
  • Longer And Trouble Free Life
  • Advance Water Cooled Motors Designs
  • Wide Voltage Motor Designs with 100% Copper Rotor
  • CED – Cathode Electro Deposition Coating
Contact us
Categories: ,

MATERIAL OF CONSTRUCTION

  • Impeller : Stainless Steel / Noryl
  • Diffuser : Cast Iron / Noryl
  • Bowl/Stage casing : Cast Iron
  • Pump Shaft : Stainless Steel
  • Motor Housing : Stainless Steel
  • Motor Shaft : Stainless Steel

Finished Rotor : CopperDiffuser : Noryl
NRV : Cast IronSuction : Cast Iron
Suction : Cast Iron
Pump /Motor Bushes : NBR / LTB
Thrust Bearing : Carbon + SS

SPECIFICATIONS

  • Head Range : Up to 276 metres
  • Discharge Range : Up to 1540 LPM
  • Power Ratings : 2.2 to 18.5 kW (3 to 25 HP)
  • Voltage Range : 160 to 240 volts (single phase)
  • Insulation : B class
  • Type of Cooling : Water-filled
  • Protection : IP 68

APPLICATIONS

  • Domestic and Community Water Supply
  • Rural Water Supply
  • Gardening and Small Farm Irrigation
  • Construction Site
  • Water Supplies for High Rise Buildings
